Tile Adhesive Coverage Techniques

How a tile looks in itself is not enough to deliver a successful installation.

Instead, the tile adhesive, which is responsible for bonding a tile to its intended surface (i.e. a wall or floor), is equally important to get right.

Beyond the type of adhesive used, the level of adhesive coverage on the tile substrate is a crucial part of any tiling project. Not only can inadequate adhesive coverage affect the tile’s moisture resistance and durability, it can ultimately impact the structural performance of the tile and therefore, the safety of the space.

Despite the importance of getting the tile adhesive coverage right, it is frequently under-specified and poorly understood, both in domestic and commercial contexts.

At Parkside, we offer technical advice about the tiles we supply to architects, designers and developers.

In this guide, we’ll run you through the full range of tile adhesive coverage techniques, the minimum standards required by BS 5385 and why inadequate coverage causes installation failure. Plus, the regulatory position on prohibited methods including spot bonding.

What Is Tile Adhesive Coverage and Why Does It Matter?

Tile adhesive coverage refers to the proportion of the tile's back face that is in contact with cured adhesive after installation.

It is expressed as a percentage and the minimum thresholds are set out in BS 5385, the British Standard that governs wall and floor tiling practice in the UK.

The coverage thresholds specified by BS 5385 are:

• 80% minimum for dry internal wall and floor applications
• 95% minimum in wet areas, externally, in swimming pools, or under large format tiles
• 100% recommended under natural stone tiles to prevent differential staining and ensure even load distribution

These are not advisory targets - they are minimum requirements. An installation that falls below these thresholds is non-compliant, regardless of how the tile appears on the surface.

Poor adhesive coverage creates a chain of problems that compound over time.

Voids behind the tile allow moisture to accumulate in wet areas, promoting mould growth and substrate degradation.

Unsupported tiles flex under load, cracking the tile body or breaking the adhesive bond at the contact points. Larger format tiles are particularly vulnerable, since even small amounts of flexion across a 1200x600mm tile are enough to cause failure.

Inadequate coverage produces the characteristic hollow or drumming sound when the surface is tapped, which is a standard site inspection test and a common basis for rejecting a commercial tiling installation.

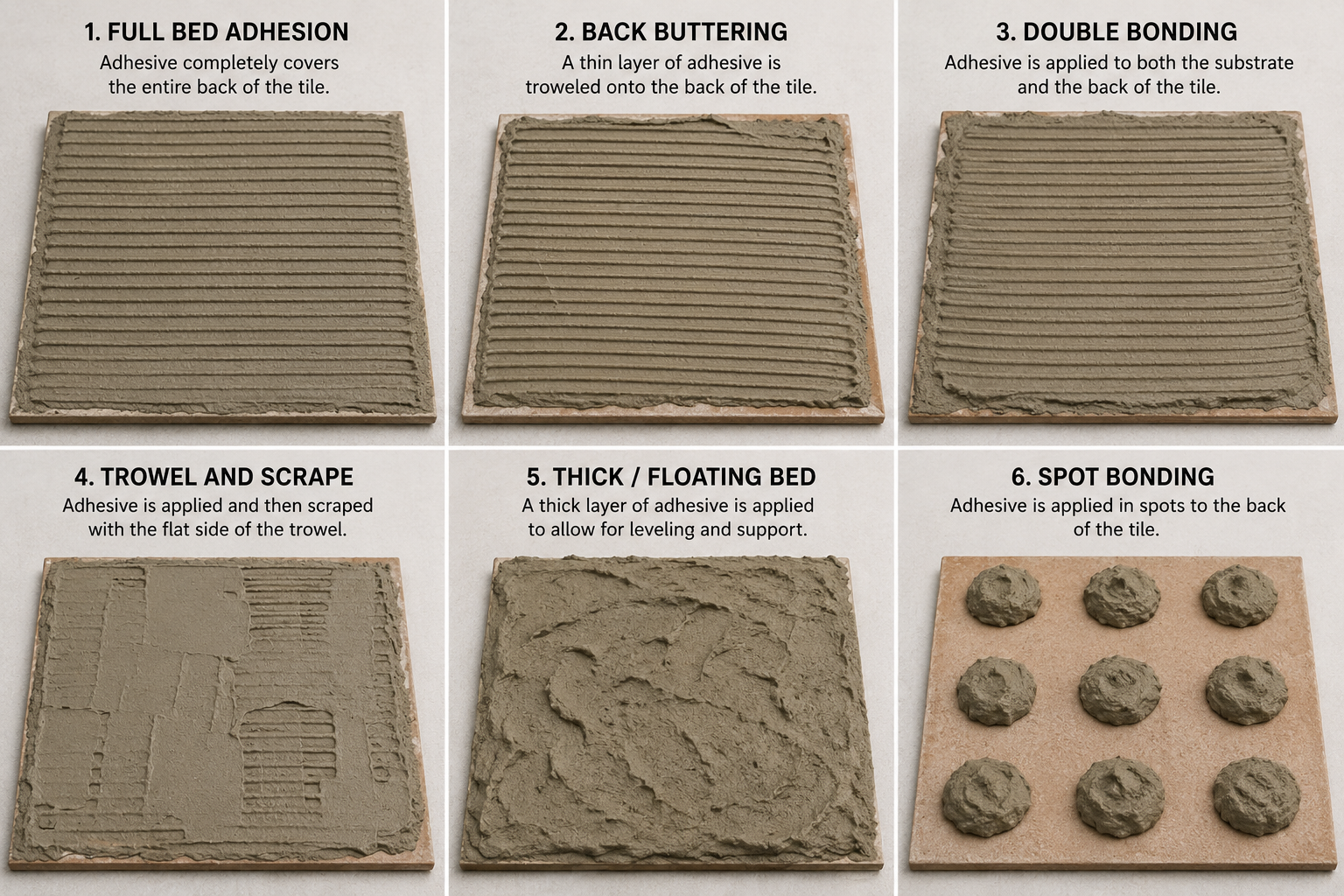

Tile Adhesive Coverage Techniques: The Full Range

There are several compliant approaches to tile adhesive application, each suited to different tile types, substrates and project requirements.

Full Bed (Solid Bed) Adhesion

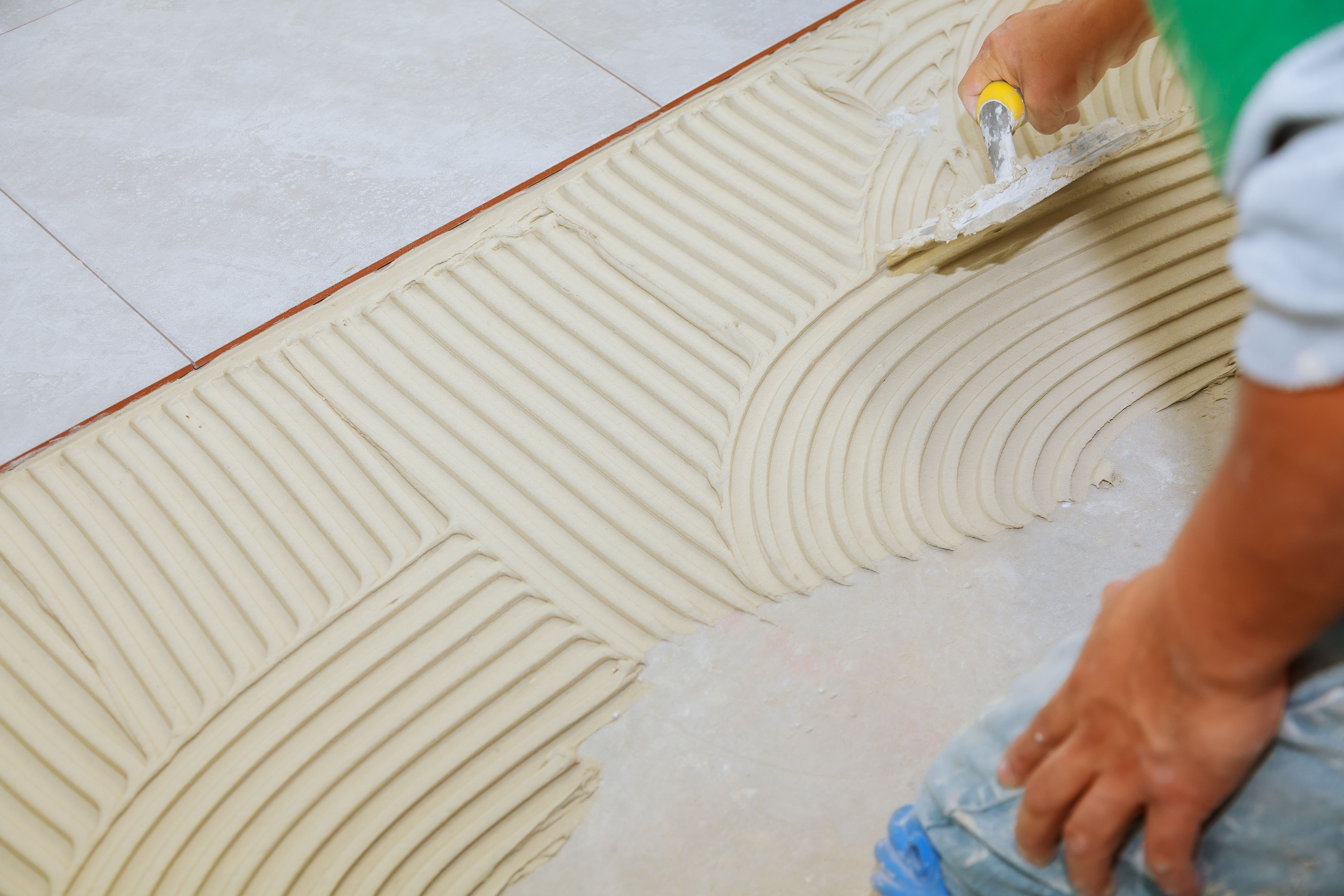

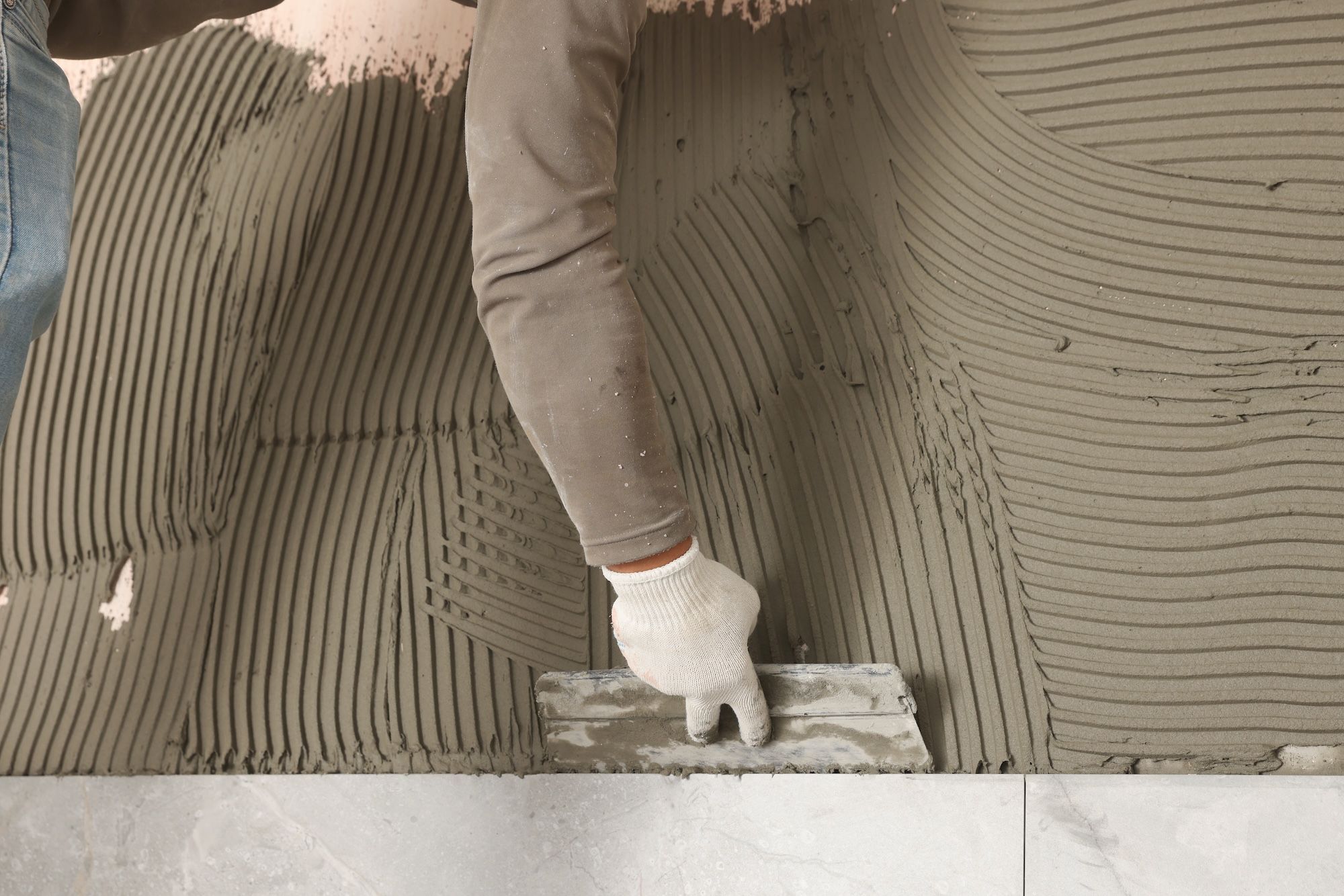

Adhesive is applied to the substrate only, combed with a notched trowel to create consistent ridges across the full bonding area.The tile is then pressed into the adhesive and worked into position so that the ridges collapse and fill the space between the tile and substrate without voids.This is the standard method for most ceramic and smaller format porcelain tiles in dry internal environments and achieves the 80% coverage threshold required by BS 5385 when executed correctly.

Back Buttering

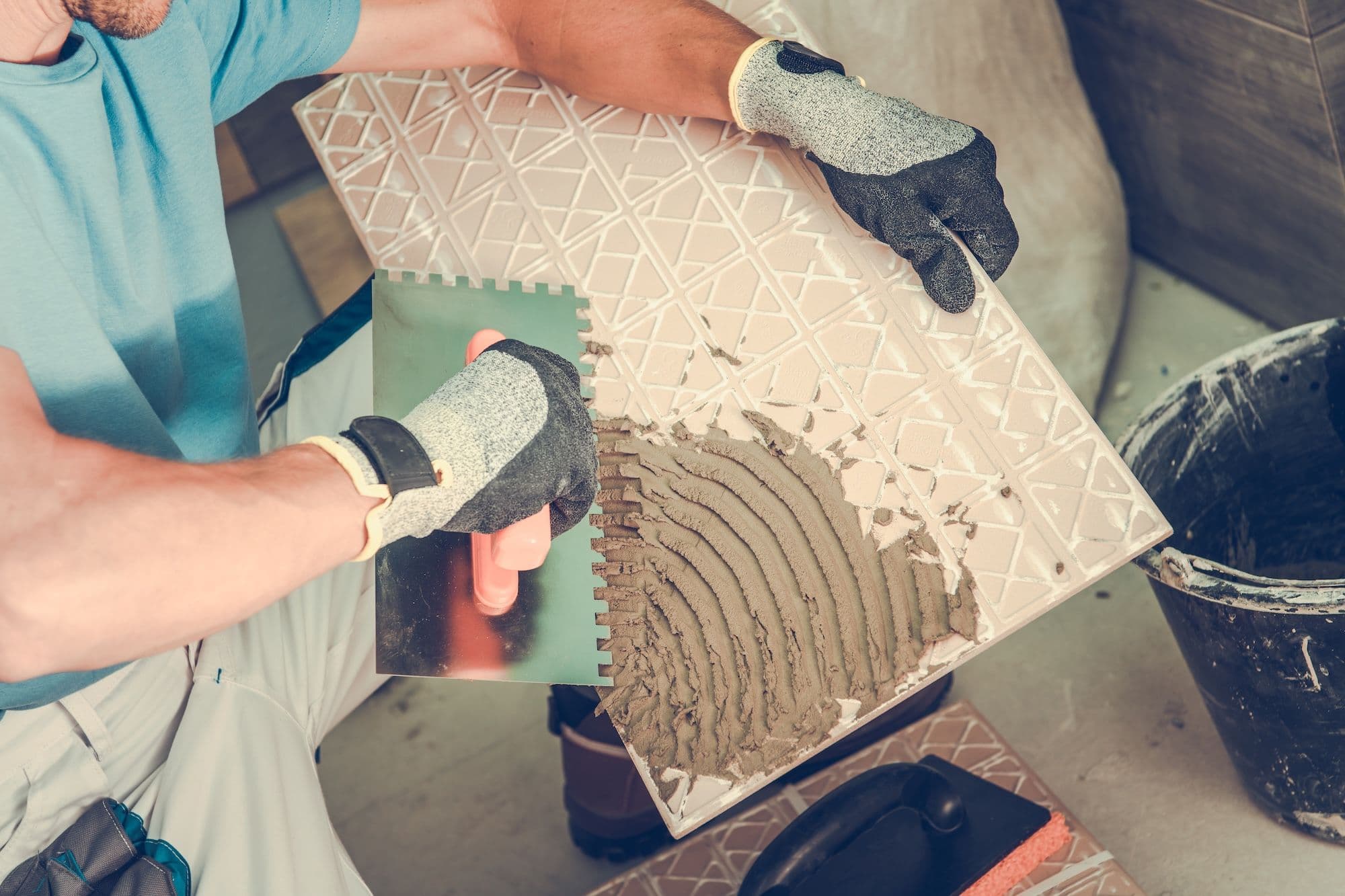

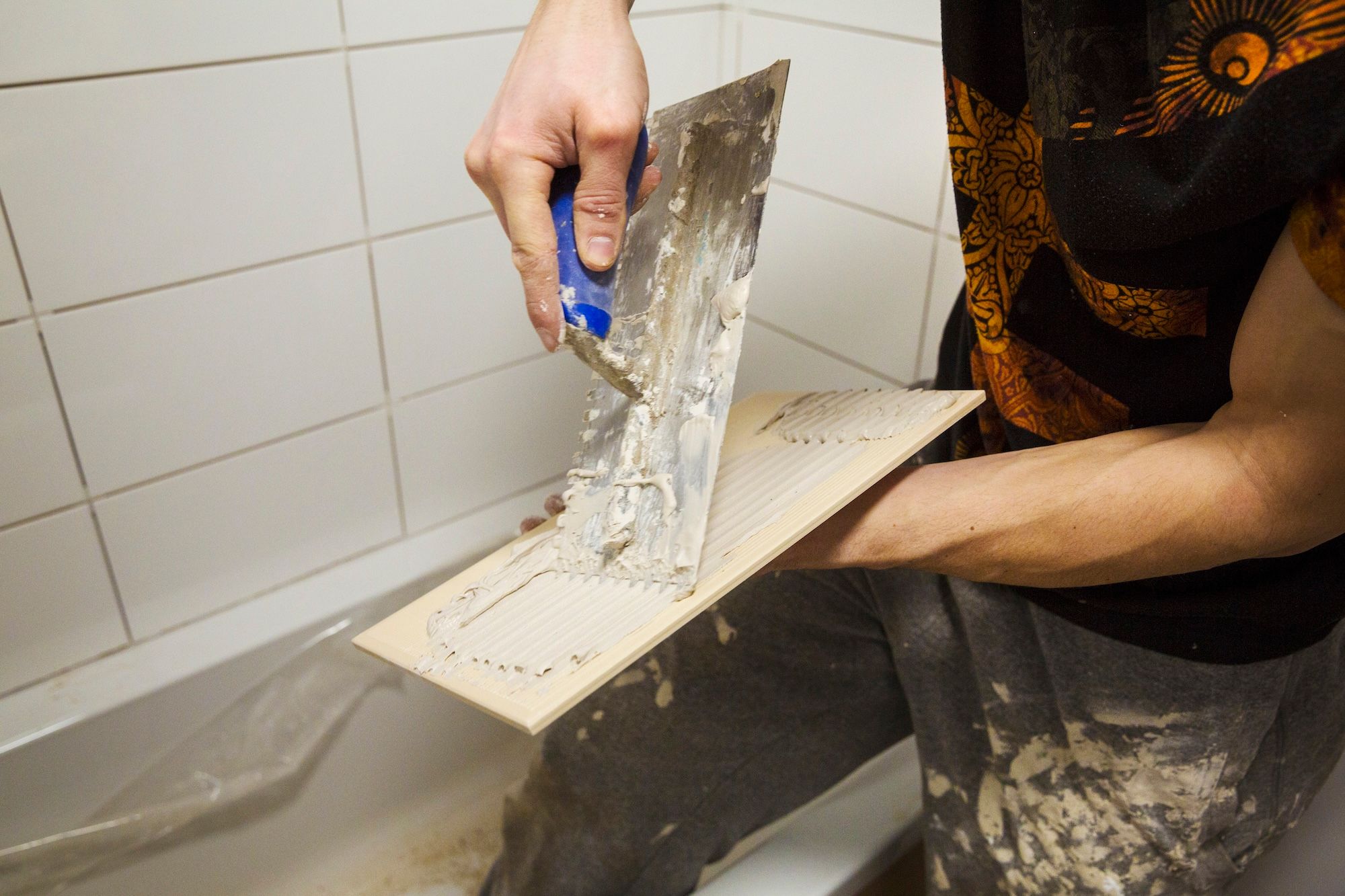

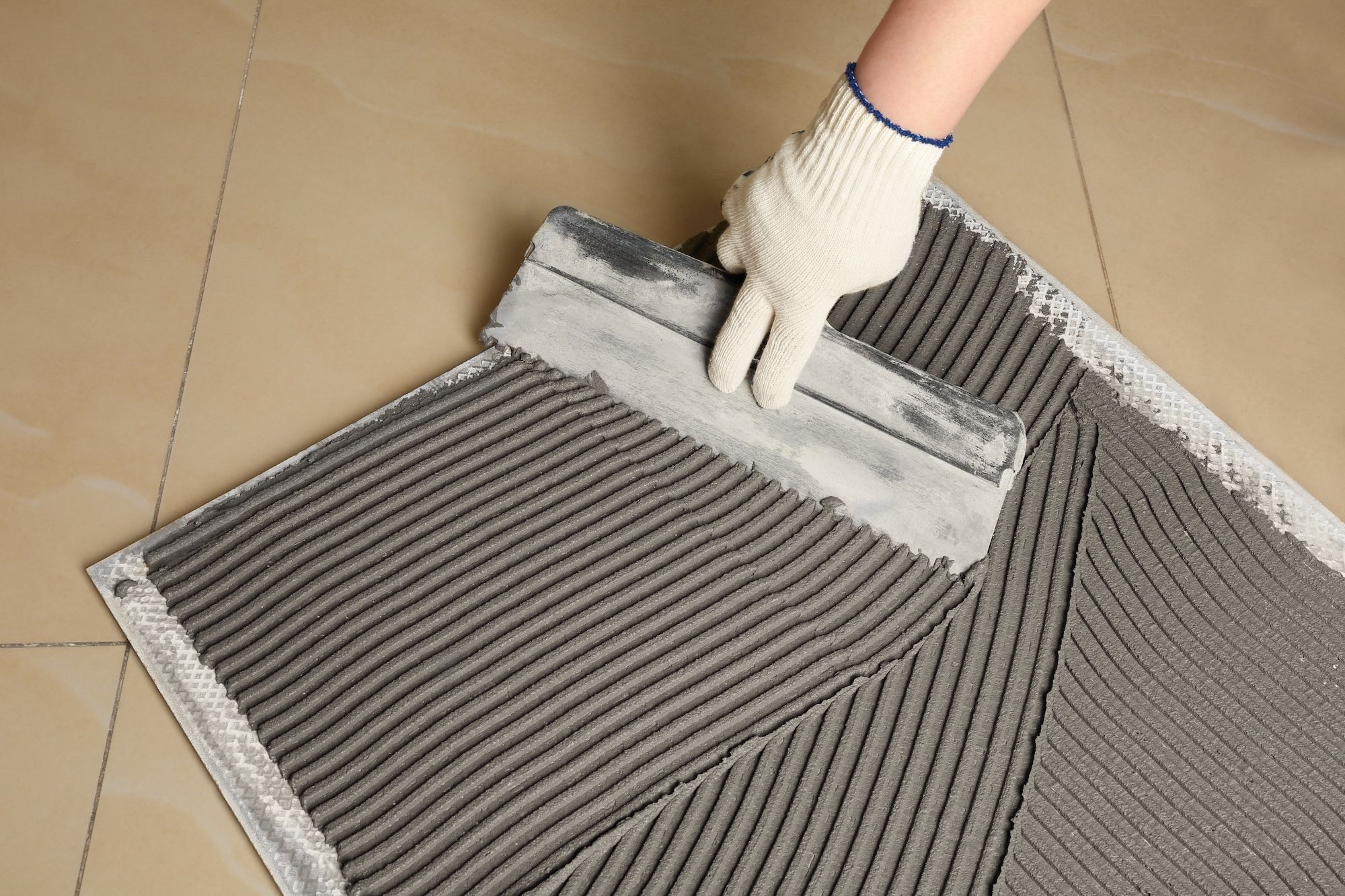

A thin, even layer of adhesive is applied to the back of the tile in addition to the combed bed on the substrate. This fills the surface texture of the tile back and improves the initial bond. Back buttering is particularly effective for dense, low porosity tiles, including many porcelain types, where adhesive grip depends on mechanical bond rather than suction. It is also useful for natural stone tiles, where the additional coverage layer helps prevent differential staining caused by moisture tracking through an uneven adhesive contact zone.

Double Bonding

Adhesive is applied to both the substrate and the back of the tile at the same time, with both surfaces combed before the tile is pressed into position. This is the most thorough approach and is standard practice for large format tiles, heavy stone tiles, external applications and any installation where eliminating voids is critical. Double bonding achieves the 95% coverage threshold required by BS 5385 for wet areas and external use when carried out correctly and is the recommended method for any tile larger than 600mm on either dimension.

Trowel and Scrape

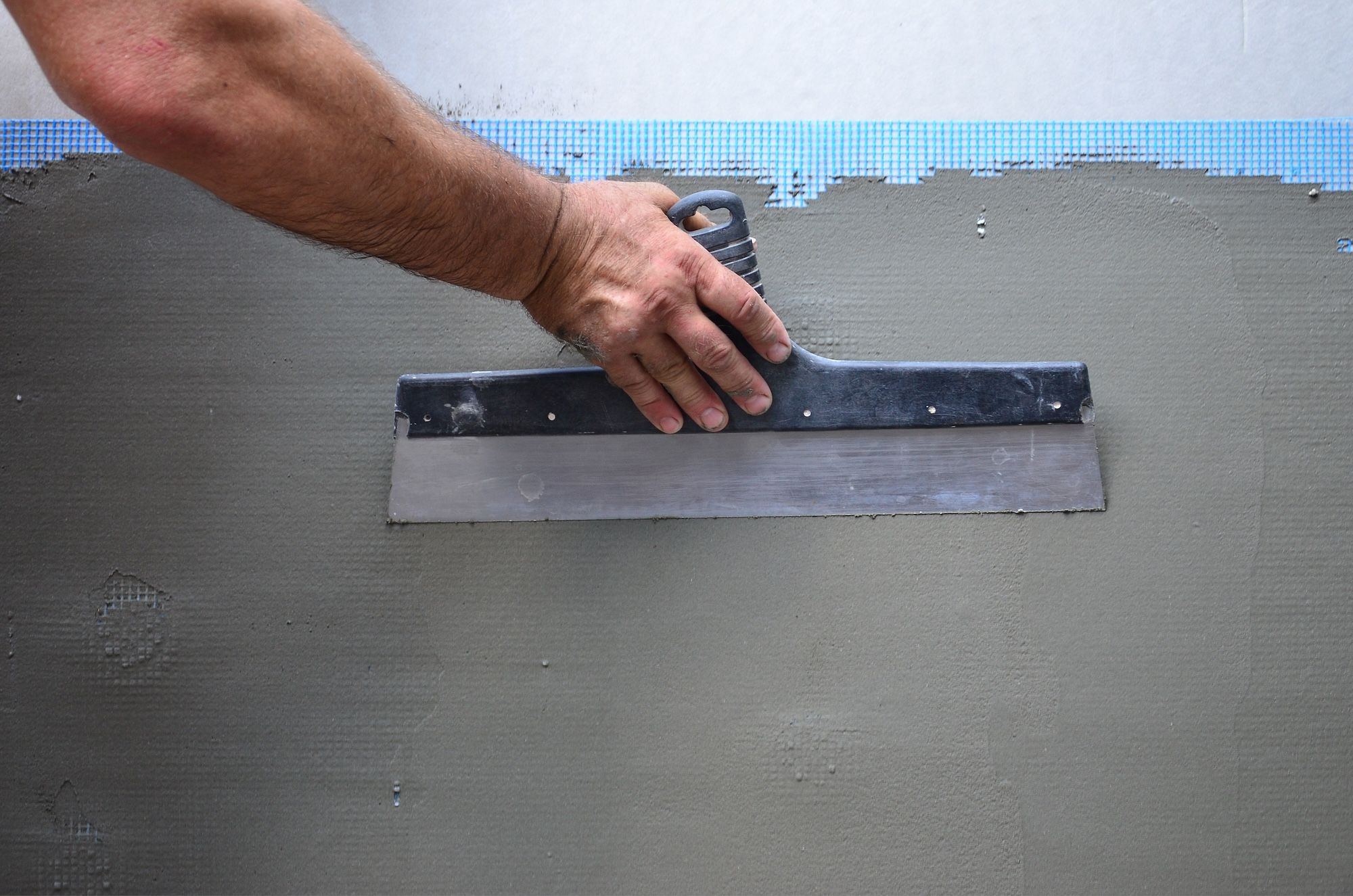

Used primarily with epoxy adhesive systems, theadhesive is applied to the tile back and then scraped back to leave a very thin, even film. The substrate (i.e. the wall) is also coated. The thin film method ensures complete contact with the surface texture of the tile without the risk of adhesive squeeze out at the joints, which is a particular concern with epoxy systems that are difficult to clean once cured. This technique requires care and product specific knowledge and is less common in standard domestic tiling contexts.

Thick Bed / Floating Bed

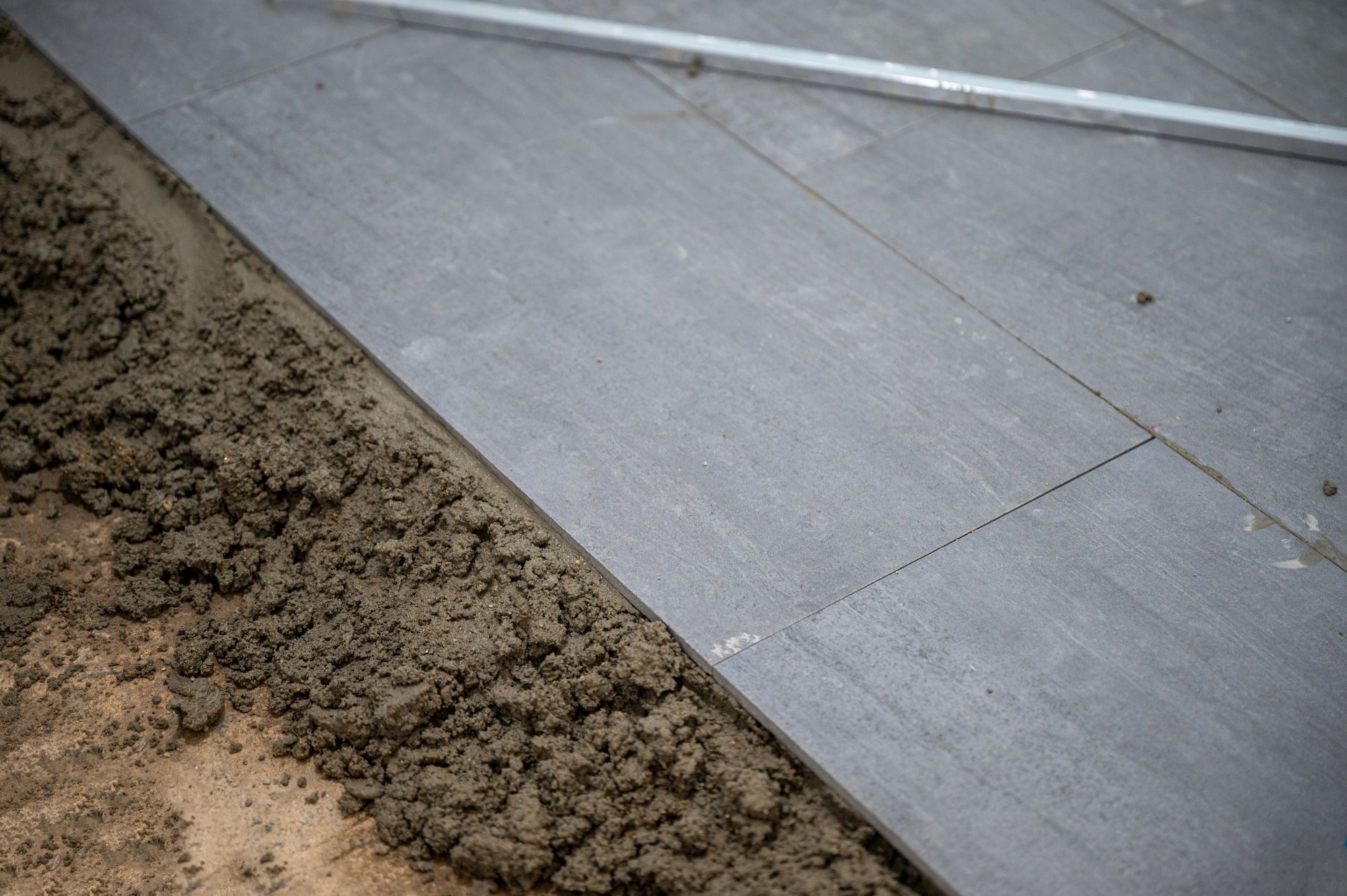

A traditional method using a semi-dry sand and cement mix, laid and screeded to the required level before the tile is bedded directly into it. A thick bed is appropriate for external paving, swimming pools and situations where significant substrate levelling is required, or where the tile format is too large or too heavy to be safely hung on a wall using thin bed adhesive alone. It remains relevant for certain natural stone floor installations and large format external tile systems, though thin bed alternatives have largely replaced it in internal contexts.

Thin Bed vs Medium Bed

These are not distinct application techniques but product categories that affect how the above methods are executed in practice.

Thin bed adhesives are applied at 3 to 6mm and require a flat, well prepared substrate.

Medium bed adhesives allow for a build of 6 to 12mm and accommodate greater substrate variation and tile warpage.

As large format tiles have become more prevalent, medium bed products have become increasingly important, since even tiles manufactured to tight dimensional tolerances will exhibit some degree of curvature across the face at larger sizes.

Specifying a thin bed adhesive on a 900x900mm tile without accounting for this is a common source of installation problems.

What Is Spot Bonding & Why Is It A Problem?

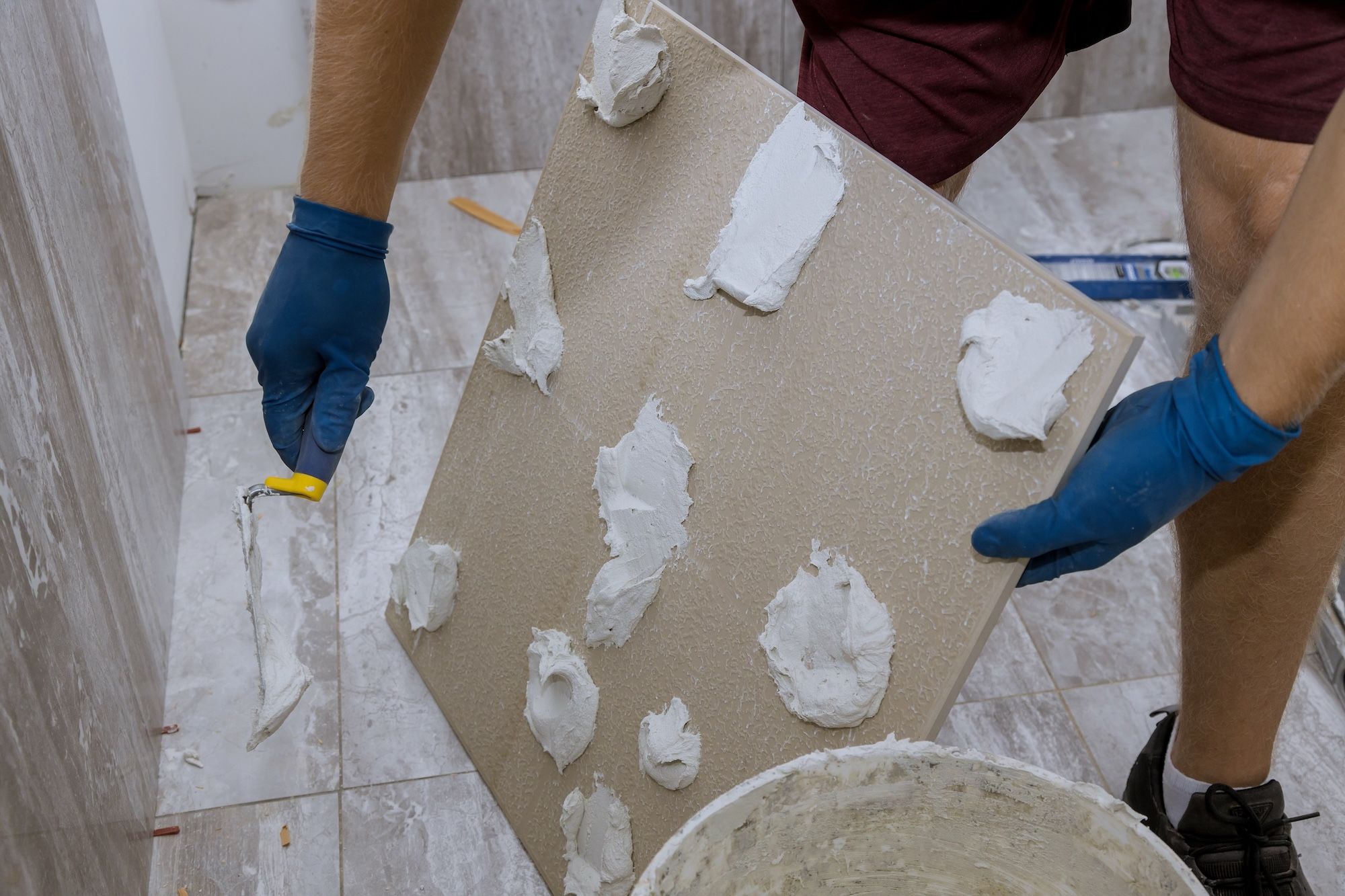

Spot bonding (also known as dotting and dabbing) is when tile adhesive is applied in thick blobs or dots rather than a continuous, combed bed. The tile is pressed into position making contact at a limited number of high points, leaving a significant proportion of the tile back unsupported and unbonded.

Unfortunately, the core problem with spot bonding is the lack of adhesion it provides. Tiles can be heavy, especially when they are large format tiles. BS 5385 recommends a minimum of 80% coverage in dry internal areas and 95% in wet areas, externally, or under large format tiles. However, spot bonding typically achieves 20 to 40% adhesive coverage. Sometimes, the coverage percentage is even lower.

The resulting safety issue here is obvious and that is, that the tiles are likely to fall off if they are not properly adhered to the surface.

Unfortunately, spot bonding remains common in domestic installation practice despite being explicitly prohibited by BS 5385 Part 1, which states that spot bonding is not an acceptable method of tile adhesion.

Regulatory & Liability Implications

Spot bonding is not a criminal offence, but its regulatory and liability implications are significant.

Approved Document A of the Building Regulations (structural stability) and the general duty of care under the Building Act 1984 mean that a tiling installation which fails due to inadequate bonding could be deemed non-compliant, particularly if tiles detach and cause damage or injury.

Under the Occupiers Liability Act 1957, building owners and occupiers have a duty of care to visitors. A tile that detaches from a wall in a hotel bathroom, a commercial washroom or a public building is a serious safety risk.

On notifiable projects, CDM 2015 places a duty on the principal designer to mitigate foreseeable risks. Therefore, a specification that permits or fails to prohibit spot bonding in a wet area or at height would be difficult to defend following a failure.

In short, spot bonding tiles is a clear liability risk in any commercial or public-facing installation.

Common Signs Of Improper Tiling Adhesive Coverage Techniques

• Hollow or drumming sound when the tiled surface is tapped, indicating voids behind the tile
• Tiles that rock or flex slightly underfoot or when pressed, suggesting insufficient support across the tile face
• Cracked tiles with no obvious impact damage, caused by unsupported areas flexing under load or thermal movement
• Grout joints that crack, crumble or repeatedly fail in the same locations, often a sign of tile movement caused by poor bonding
• Tiles detaching from the wall or floor, either partially or completely, particularly in corners or at the edges of a run where coverage is hardest to achieve
• Damp patches or staining appearing behind or around tiles in wet areas, indicating moisture has tracked through voids in the adhesive bed
• Mould growth at grout joints that persists despite cleaning, often caused by moisture accumulating in unbonded voids rather than at the surface
• Efflorescence (white salt deposits appearing at grout joints or tile edges) caused by water moving through voids and depositing minerals as it evaporates
• Tiles that were clearly difficult to remove during a strip-out, revealing only small isolated contact points on the tile back rather than continuous adhesive coverage
• Adhesive ridges visible on the back of a removed tile that have not collapsed and bonded, indicating the tile was placed without sufficient pressure or the adhesive had begun to skin over before laying

What To Do If Your Tiles Show Any Of The Above Issues

Stop using the area if there is a safety risk: Detaching wall tiles in a shower enclosure, above a bath, or in any commercial or public space should be treated as an immediate hazard. Do not wait for a survey before acting if tiles are visibly loose or have already come away.

Do not simply re-fix individual tiles: The temptation is to spot-fix the affected tile with fresh adhesive, but this does not address the underlying cause and is likely to produce the same failure again. A loose tile is often a symptom of a wider coverage problem across the installation rather than an isolated defect.

Commission a proper condition survey: A qualified tiling contractor or independent tiling consultant should carry out a tap test across the full installation to map the extent of any voids. This gives an accurate picture of how widespread the problem is before any decisions are made about remediation.

Establish the cause before specifying remediation: Poor adhesive coverage is the most common cause of the signs listed above, but not the only one. Substrate movement, inadequate tanking in wet areas, missing movement joints and incompatible adhesive products can all produce similar symptoms. The remediation approach needs to address the actual cause, not just the visible symptom.

Document everything: If the installation is relatively recent and the work was carried out by a contractor, photograph the affected areas, retain any tiles that have detached and check whether the installation is covered by a guarantee or whether the contractor has professional indemnity insurance. A non-compliant installation that falls below the BS 5385 coverage thresholds may constitute a breach of contract or a breach of the contractor's duty of care.

In commercial settings, consider your obligations: A building owner or facilities manager who is aware of a defective tiling installation in a public or customer facing area and takes no action is exposed under the Occupiers Liability Act 1957. Awareness of the problem creates a duty to act on it.

Expect full strip out in most cases: Where coverage is significantly below the BS 5385 minimum across a large proportion of the installation, a full strip out and relay is usually the only compliant and durable solution. Partial repairs in a poorly bonded installation tend to fail again as the surrounding tiles continue to move.

Choosing The Right Method

The correct adhesive application method depends on the tile material, format, substrate condition and the environment the installation will be exposed to.

In all cases, the adhesive coverage method should be called out explicitly in the specification rather than left to installer discretion.

It is one of the most frequently overlooked elements of a tiling specification and one of the most common causes of installation failure and subsequent defect claims.

Where Can Installers Find Additional Information On Adhesive Coverage Requirements?

BS 5385 is the code of practice for wall and floor tiling. It covers adhesive bed thickness, coverage and application method across its parts for walls, floors and external areas.

This sits alongside BS EN 12004, which classifies tile adhesives by type and performance characteristics, and BS ISO 13007, which provides full specifications and test methods for adhesives and grouts.

In practice, most tilers also rely on the technical datasheets issued by adhesive manufacturers such as BAL, Mapei and Kerakoll, which translate these standards into product-specific instructions covering trowel notch size, open time, back-buttering requirements and coverage rates.
